Aquapond S-Type

Features

• Compared to the conventional concrete storage tank, we have adopted more compact of a standardized small block.
• More excellent of a reservoir in economic efficiency can be created by making the bottom slab in cast-in-place concrete.
• The storage rate of 90% or more can be obtained.
• Because it is a standard of inner space height of 1.0m to 2.0m (10cm pitch), it is easy to product depending on the adjustment of the storage amount.
• Stable strength for precast storage tank and the quality can be ensured.
• Construction for efficient member arrangement can be done smoothly.
• It was design for earthquake resistance.

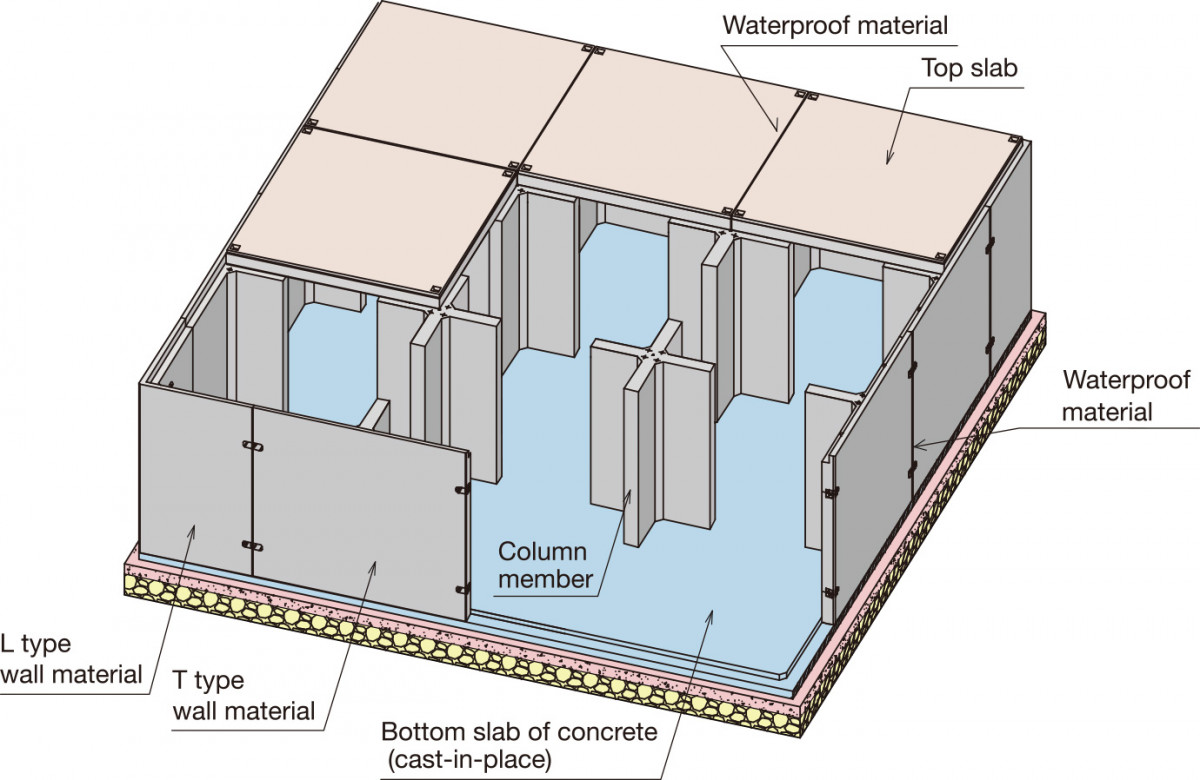

Laying structure view

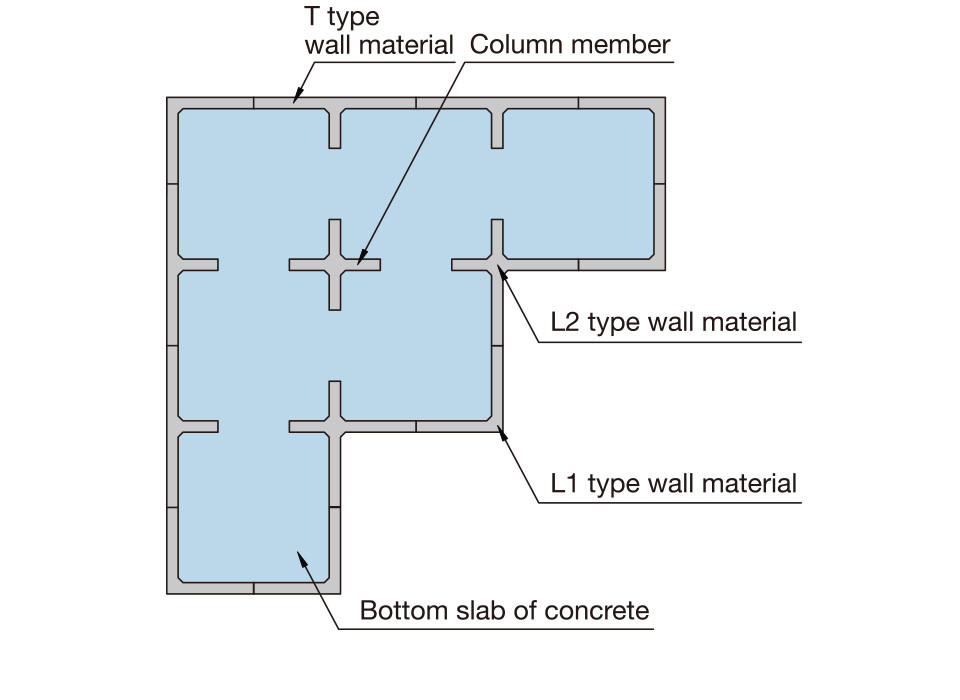

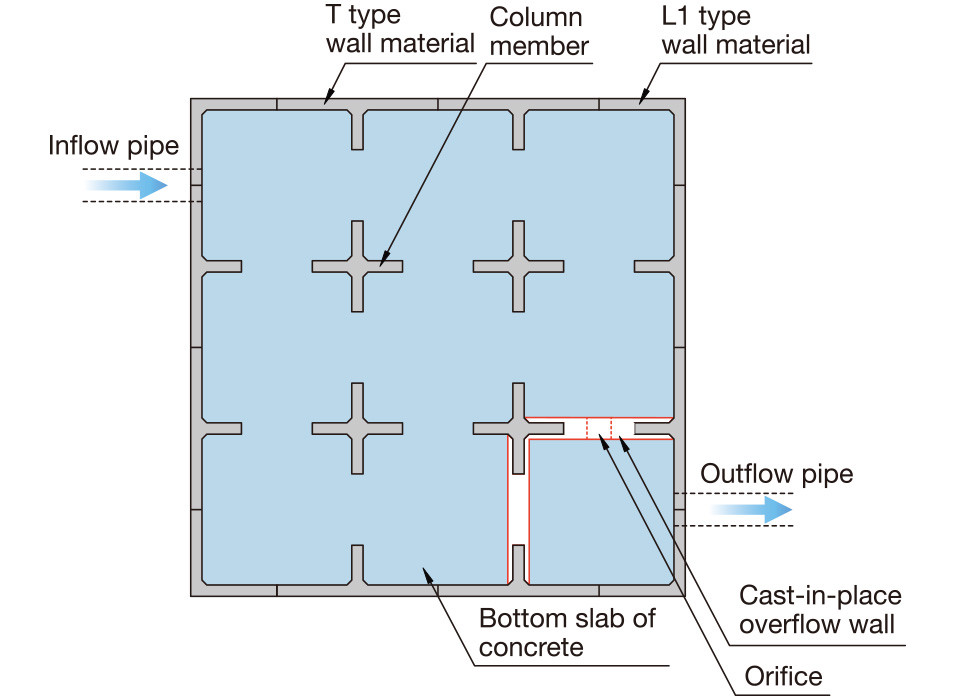

Arrangement example

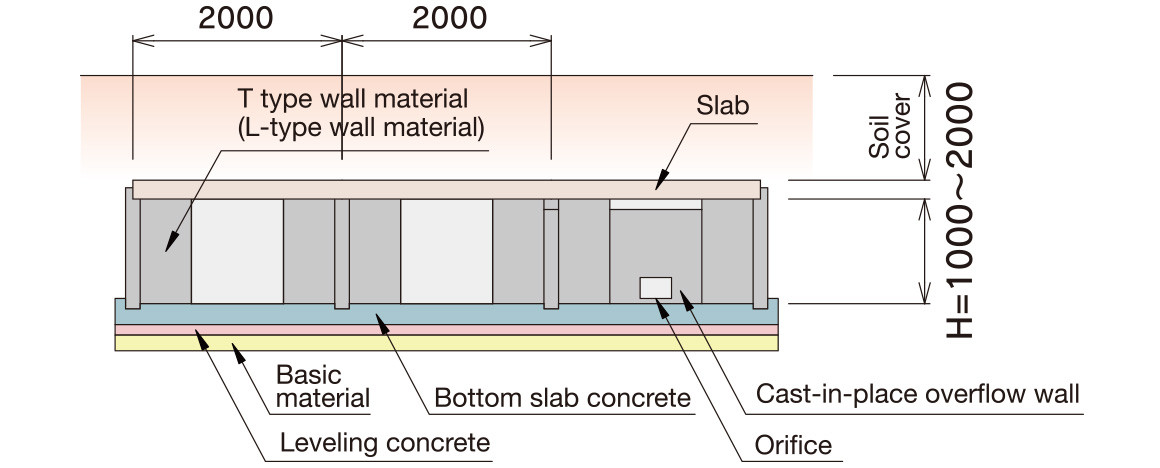

Standard cross-sectional view
